|Description: Refraction of sun light due to cold dense polar air under warmer thermal layers causes an increase in brightness almost unknown within present physics literature. Global Warming may be seen by studying simple satellite picture archives. Low on the horizon polar sunsets have sun disks compressed into a line. Thermal Inversions cause equally an increase in brightness during twilight.
This page contains a vast database pertaining to temperate and polar sunsets. It also holds many differential refraction pictures, at multiple Zenith Angles. Recently conceived twilight brightness theory with respect to the Y-V Ulluq Q effects are presented. Extraordinary Moon shots show simple refraction. The data is there for you to study, the thoughts are progressive from February 2001 till today, they change according to knowledge acquired from this page and from other pages as referred to below. The data presented is quite accurate, calculations if any can be verified, while past thought mistakes are left untouched, in order to leave the examiner review a fascinating journey in science. Major paradigm shifts will be explained on each individual pages, they will be recognizable by the date they are written.
WD, December 2004
Atmospheric Refraction is very misunderstood or rather under-studied, it has enormous potential to solve apparently complex problems, like the true temperature of the troposphere. A landmark paper:
SUNSET SCIENCE. IV. Low-altitude refraction. By Andrew T. Young, Departnment of Astronomy, San Diego State University, Astronomical Journal, 127:3622-3637, 2004 June.
Proves without much doubt that Astronomical refraction is caused in the Troposphere. This certain fact can help ascertain key measurements, as used on this webpage, helping to calculate the temperature of the lower troposphere, without MSU doubts, such as radiometer microwave satellite readings which fail to distinguish the Stratosphere from the Troposphere.
Another important paper has shown the sun seen by explorers in 1597 at -5.7 degrees below the horizon. This record still holds to this date:
S. Y. van der Werf, G. P. Können, W. H. Lehn, F. Steenhuisen, and W. Davidson, "Gerrit de Veer's True and Perfect Description of the Novaya Zemlya Effect, 24 -27 January 1597 ," Appl. Opt. 42, 379-389 (2003)
Click here for Link
WD April 27, 2007
Latest EH2r news articles construction site, you may comment on these...
2013 Summer fall early winter projection
~ New forms of heat found, a new metric can be seen
First the success of last Fall's winter projection, lessons learned.
"1- Slow start of winter; Winter does not start at the solstice as tradition goes, it begins at various days about the fall equinox, when darkness hits the North Pole.
->This year winter started very late."
It did, but it had a twist, literally the circulation around the Pole was dominantly Anticyclonic. Very much opposite to previous winter of 2011-12.
"2- Sea ice thickness affects the enter circulation of cyclones about the Northern Hemisphere, very little thickness means the slow build up of winter.
-> Low pressure cyclones will easily penetrate the North Pole area same as last year, this means a warmer Arctic and somewhat cooler temperate zone, as opposed to a wide variation of very cold to cool temperate winter."
It was not quite so, the Pole area had an early starting anticyclonic build up directly above the remaining pack ice from the great melt of 2012. This was the dynamic genesis of the winter of 2012-2013. I identified this phenomenon early on but miss diagnosed its importance. Didn't think it would gave stayed after growing along with the recovering ice extent. Lows didn't penetrate the North Pole , despite thinner ice, primarily because the circulation around the Pole was clockwise. The flow basically kept Kara and Barents sea Cyclones to hover over these seas. Very unlike 2011-12 winter.

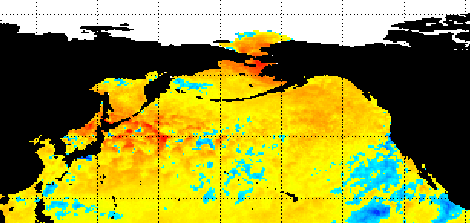

"3- Sea surface temperatures along with atmospheric temperatures are at all time highs
->Implying great moisture events throughout the winter everywhere influenced by sea evaporation."
That was bang on, great records of record precipitation was reported all over the world.
4- Cold Temperature North Pole locations, they have been varying for about a month
-> means not steady monotonous weather for the Northern Hemisphere."
Bang on varying Jet stream locations caused unusual weather patterns were witnessed pretty much everywhere.
…….."A warm wet winter for all. How warm depends on cloud extent, how wet depends on whether El-Nino will survive. And by wet, I mean when near 0 C with snowfall as well. Ireland and UK should have a reprieve in regular rainfall and more variable weather, North America will wonder where winter went again. The rest of The NH will enjoy warmer weather along with bitterly cold periods as Eurasia will cool down more than the Arctic."
"This leaves El-Nino in a lynch , suspended animation, but nonetheless leaning on a come back summer 2013, because there is no mechanics in place fostering a deep La-Nina except for the Southern Hemisphere dominated by Antarctica and ozone holes,"
This has happened pretty much as expected. ENSO varied quickly towards La-Nina. Then re-trended towards El-Nino. The continents were much colder than the Arctic first. Early winter of 2011-12 was mild following the sea ice great melt.
"If La-Nina returns full blast, unlikely but if so, the melt in spring and summer time will crush 2012 great melt as a distant old record, the Pole will be sailable. If everything remains Neutral or warmer ENSO wise, the ice pack North Pole will be assailed once again by open sea water, 2012 record melt will be still exceeded. The big add on would be increased tornadoes (where they thrive) early in the season, its in the cards, a normal tornado season is not yet foreseen, by all accounts waiting for Polar stratospheric vortex to show itself last. wd December 2, 2012."
North American Tornadoes prediction was excessively precise. Once a rapidly building Polar Stratospheric collapsed in Late December Early January, the very early tornado season ended. ENSO has been very difficult to predict. But El-Nino trending from and almost certain pending La-Nina . Proved that ENSO had no real driver at the wheel, and seemed to languish without a sense of direction.
Over all I rate this past projection as fairly good. While I missed to extend what I detected with respect to sea ice build up reinforcing anticyclonic activity.
Sun Refraction data;
What is the score?
275 observations of differential sun disks; leading in averages percentages, 120 decimal levels from -1 to 10 degrees elevation
2010 and 2005 #1, 2011 #2 and 2013 #3.

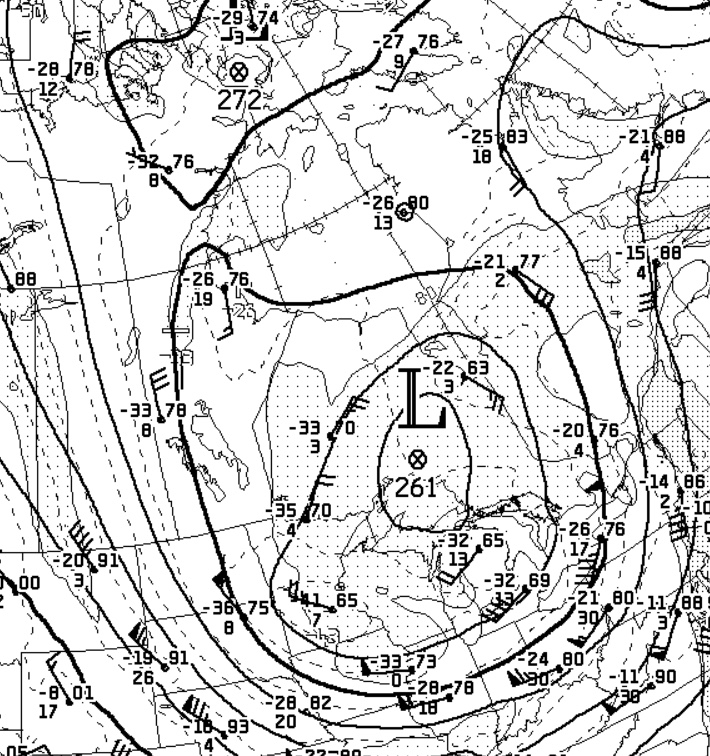

February and Early March sun disks were very compressed, only to expand gradually, for the first time I measured many sun disks with strictly adiabatic profiles consistently at end of April. They revealed pure cold temperature refraction compressions. Not surprising, since captures were taken in the zone of cold temperature North Pole, an area where the densest coldest air existed. This zone was much reduced to the Northern part of the Arctic , the Northeast sector of the Canadian High Arctic. ECMWF 500 mb map captured this quite well, when eventually the 500 mb Low center in blue will disappear so will also winter, and this is projected to be so on May 8 2013. One would expect round sun disks when the temperature profile becomes purely adiabatic, it was so, even to the extent when green flashes were less numerous. But the disks were not compressed strangely similar to 2005 or spring of 2010, which were greatly expanded on a continuous way. So the habit of projecting the temperature trend for the Northern Hemisphere is the basis or the back bone for this seasonal long range forecast. Since we were in the Cold temperature North Pole region during literally the entire duration ob differential refraction observations, while coincidentally the rest of the Northern Circumpolar Hemisphere was not, it may be more suitable to predict 2013 as # 2 or 3 warmest year in history. From there we can likely reason out the outcome of the weather to come. The basic cold dense temperature centric idea is that the rest of the world weather circulates around this center. It becomes then important to know where the likely location of the cold temperature North Pole will be. Especially given the circumstances of a rather well established anticyclonic circumpolar flow over winter just past .
New method; Horizon refraction analysis finds more heat.
Particularly strikingly different than sun disk measurements is Horizon refraction, which can be analyzed even in darkness. These observations were compared to a database of past 3 years. Recent refraction analysis presented much stronger adiabatic tendencies. Last year 2012, had very similar effects especially compared to 2011 which had a strong polar stratospheric vortex. Any vortex once well established may trigger a great ozone depletion at its center, giving temperatures lower than -80 C. This great chasm in temperature affects even the surface values, but also the structure of the very lower temperature profile. Winter 2012 -2013 had a strong vortex short lived at end of December 2012, the vortex collapsed under its own oversized weight while some would say by a Sudden Stratospheric Warming, which may be part and parcel of its disintegration process. The vortex split in 2 in January. All during that period, there was very little strong refraction. This was an astonishing find. The Vortex split in 2, and there was 2 vortices more or less centered from ground up to stratopause , one over the Canadian Arctic Archipelago the other over Northern Russia.
2012-2013 summer projection.
ECMWF, the deep blue area at left comprises of the coldest air in the Northern Hemisphere, other lighter blue zones are mostly Cyclones. Winter essentially will vanish with the big blue. The larger question is how the circumpolar general circulation will be this summer? Cyclonic or Anticyclonic? In fancier terms
Arctic Oscillation Positive or Negative? After a winter of mostly anticyclonic weather, one should use the theory of persistence and say it will be anticyclonic. But that is too simple for a larger chaotic circulation system. The process of rapidly melting sea ice may give a different pattern all together, which is Cyclonic.
Which will it be? An anticyclonic dominated circumpolar region would be a disaster for Arctic sea ice, the other way around would be better as was the case in 2012, imagine a 2012 greatest melt with clear air instead of clouds? How much more would sea ice have vanished? Nevertheless it turns out either way sea ice will melt further this summer.
The greatest puzzle to consider is why very weak refraction at the surface to air interface was observed? The answer is the sea was warmer. Because the over all thermal effect or long wave emission from the Arctic Ocean was strong this last spring and more so very strong particularly during the long night. Absent the sun, inversion effects were mostly rare, astounding considering past observations. These near surface lack of inversions were key, it stems from thinner ice or a warmer sea, perhaps both.
Projection scenario Neutral El-Nino
El-Nino does not seem to be making a come back. Although there was a time not long ago when it appeared that ENSO was becoming La-Nina, now re-trending towards El-Nino. ENSO is a major player with respect to cloud formations, even in the Arctic. A Neutral ENSO means worse conditions for sea ice than 2012. Therefore the sea ice melt of 2013 will be greater, with a great possibility of the Pole being free of ice and navigable by ordinary ships. Earlier on Adiabatic lapse rates enhance or bring up whatever is on the surface, open water would be a greater source of energy transferred to the atmosphere, therefore a great soggy wet summer for most of the Arctic. The mechanism is simple, an open spring lead usually spreads out its heat under a persistent inversion layer. The existence of the inversion layer literally surrounds the lead with very cold air. Eventually the lead freezes. The absence of boundary layer changes this scene. Adiabatic air likely draws more heat, which flows upwards. Since it is spring, sunlight
warms the darker water as well, the lead should remain open longer. This was observed particularly in 2010. While a same gap in the ice in 2011 was observed to last only a day.
General Circulation of the Arctic should be more Cyclonic, given the rather large influence of a more open Arctic Ocean, the already thinner ice is already favoring an early eradication of boundary layers. There should be lesser cloud coverage than 2012 for the circumpolar region because of Neutral ENSO conditions.
Further to the populated South will benefit from warmer weather with lesser harsh precipitation variances associated with El-Nino. Tornadoes should be less frequent than an average season less numerous than 2012. This would be nice if it was not for Neutral ENSO comes what should be a "normal" summer. This would be nice if it was not for Arctic sea ice disappearing greatly. The greater presence of much wider Arctic ocean water affects the very structure of jet stream circulations, making them lethargic or slow moving. A major omega block somewhere over the Northern Hemisphere, likely causing Central USA furtherance of drought and or Eurasian caucuses to dwell under similar conditions.
Extremes in precipitation will still exist, namely NW Europe especially by Greenland massive ice sheet placing the cold temperature North Pole near its NE shores.
WD April 28, 2013
Polar Tropopausic clouds
- Potential Proof of visible dark CCN's in the extreme lower stratosphere
Without further a due the evidence:
On this picture, the sun is well set, twilight is about to end, sun elevation is -6.36 degrees below the astronomical horizon, what appears to be a noctilucent cloud is likely a PSC , but Polar Stratospheric Clouds form at -78 C, there was no evidence of -78 C layer anywhere in the upper atmosphere throughout the entire Arctic. Furthermore the bright cloud appears lower, amongst what I call CCN layers which seed some scant Cirrus clouds just below. An approaching weather system from the Southwest moving NE (the picture is towards the SW), was likely bringing some moisture clashing with very cold high pressure air.
CCN black streaks were mixed with more liquid or ice crystal tropopause cloud, as they can be, there can be moisture in and just above the tropopause, in the middle are very visible small cirrus just under the the bright cloud, the cirrus was in the Earths shadow, the bright cloud wasn't. Furthermore the bright cloud disappeared shortly after, night set and no brightness was seen. Suggesting that this was a tropopause cloud 7.5 Km high which vanished along with twilight.
Geometric calculations at the point where the cloud was recreate disappearing sun rays altitude by the Earth's shadow when the sun is 3 degrees below the Horizon (with no atmosphere). The distance of the bright cloud may be closely estimated since it was at 2.2 degrees above the horizon. Laser and Radiosonde results show the scant presence of a cloud 7.5 kilometers above ground, moisture mixing ratio was nowhere near capable of creating a cloud. This does not mean that other regions of the sky had higher moisture like where the bright cloud was, laser ceilometer likely back scattered the CCN's as no clouds were observed above. The CCN's cover the sky completely but were only visible just above the horizon. The more numerous CCN's are the more visible they become to cover a greater chunk of the sky from the horizon up to zenith. The bright cloud has a rare occurrence of moisture, not usually seen but happens when there was chemical reactions at extreme cold temperatures, or in this case, overshooting moisture from a thundercloud event further from the South which was quite intense. There may be another exlanation.
Part of identifying the altitude of the cloud must come from satellite photography:
Available NOAA Visible satellite February 20 2013 21:15 UTC. The arrow points to the likely band of clouds where the bright cloud was. Satellite brightness near the terminator may be in fact the cloud itself. Further to the South was a coming weather system from the North Pacific.
There is a problem, the cloud band was too close to meet the basic requirement, a theoretical 20 Km high Earth shadow exists, the cloud should not be bright by sun rays, only much more distant away. Unlike the satellite photo, the horizon picture above was taken at 23:36 UTC, the system clouds were even closer by 2 hours North Eastwards movement.
Arctic Atmospheric Refraction is interwoven with illusions, the sun appears where it shouldn't. Always further above than when there is no atmosphere. So the Earths shadow theoretically at 5 degrees was lowered by refraction by about 2 degrees. Refraction confirms the CCN's altitude, low along with the bright cloud, this suggests that the dark streaks are none other than drier Cloud Condensation Nucleii, the bright slightly yellowish cloud color was very similar to a sunset at 0 degrees astronomical elevation when observed at mostly pristine Polar air. Unlike in Southern locations, many with pollutants, normal sunsets appear bright white with a faint tinge of yellow in the cloudless Arctic sky.
Suggested reading: the Earth terminator shifting due to atmospheric refraction.
WD February 20-21, 2013
On Tornadoes and the Polar Stratospheric Vortex
As a matter of an attempt to see if there is a link between tornado frequency and winter buildup of Polar stratospheric vortex, I made predictions and waited for the results, sort of like a ball rolling down on a ramp in order to determine cause an effect, I explore to find if the vortex has any effect at all with Tornado activity way to the South.
The latest November 2012 prediction was bang on:
"About tornadoes, early in the season is not from January 1 onwards, but from December 21 and later, it is the real new year. So they have happened quite early as expected, Weather Underground reports he strongest outbreak for Christmas day ever. The link between the Polar Stratosphere Vortex and tornadoes is largely an hypothesis. A larger version version of the Lorenz butterfly wings, the chaos started way above seems to permeate well below to ground. Alabama's Christmas Tornado is a good example of very strong conflicting winds. 12/26/2012"
Late 2012 vortex was very intense, but collapsed in 2 distinct continental vortices early January literally changing the outlook of everything:

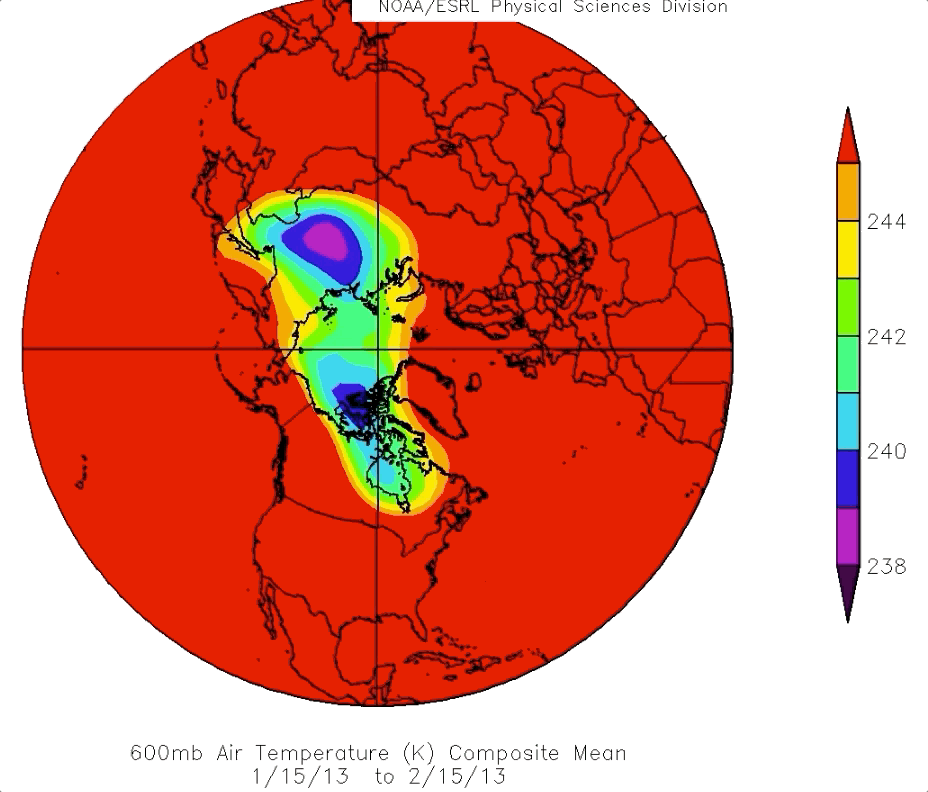

These high in the atmosphere vortices were amazingly in synch with the polar vortex below.
Accordingly NOAA Storm Prediction Center charted active Tornado Activity:
The greatest apparent link with respect to Tornadoes and PSV activity is made obvious here, the single vortex vanished and so did active tornado events. The link seems obvious and straight forward as was the weaker vortex of 2012 compared to 2011 having the most ardent PSV in memory. True enough there was a drought in 2012, as Dr Masters wrote, a drought is hardly conducive to violent thunderstorms. These recent records show tornadoes occur strongly in the spring, which preceded the drought, no doubt lack of moisture had an impact on thunderclouds, but a warmer troposphere helps drought conditions along, a non existent PSV should make the upper troposphere warmer. Warmer Upper Air is not friendly to convective activity. The question becomes larger, the drought itself is a part of the complex. In weather or climate, everything contributes to a single event.
What remains to be seen is whether the Vortex will reconstitute, it doesn't look so, but the signs are for a change from the Sudden Stratospheric Warming onwards:
The warming has stopped making way to a a weaker reconstituted vortex. Onto itself a pale fraction of 2011, tornadoes should be less frequent until the further news of a change way high in the Polar sky.
wd Feb 17, 2013
Full moon tide action caught by sea ice
NOAA HRPT sat pics January 23 2013 crescent leads forming by tide action. Look carefully at the Arctic Archipelago NW coast, it is the most susceptible place for tidal events, you can literally see it opening up especially after high tide at 00:38 UTC. The first IR picture to the left is at 22:35 UTC, middle (day 24) 00:13:00 and right side 01:54 UTC. Darker trace lead at right most picture means it just opened, it has a very warm Infrared signature.
||The full moon has always had a huge repertory of folklore associated with it. But this on is real. At about or near the full brightness of the moon and also likewise at the new moon, sea ice and tides usually do a great display, in this case North of Ellesmere Island, extreme sport skiers/sledgers to the North Pole are really aware of this. The events are readily recognizable with satellite pictures even between phases, but are not so strong or visible. The winds on the pictures above can be seen by streamers, small water sky clouds pushed away from open leads rich with water vapor, they are the condensation trails of the lower atmosphere seen from airplanes and space, in this case these are not so aligned with the tidal leads which are more to do about underwater topography, however the winds may help exacerbate formations . Of course in April , the spring tides give a more spectacular display.
Right this NOAA capture was 2.3 hours after Low tide at 07:27 UTC, the freshest lead nearest to shore of NW of Canadian Archipelago shows darker, it exposes warmer open water at near -2 C. The way to understand this to consider the black leads width considerably larger than once broken open. The to and fro of full and new moon tides are usually seen more prominent, despite apparent small height tidal differences. The reason for this occurrence is not well understood to the wider audience often dismissive that it even exists, the larger explanation has something to do with gravity and the speed of the wave action, the tidal current.
||Of Note is the close proximity to shore of the tidal event (a sign of the times) then the bifurcation Northward (along with the high tide ebb crest). Its width likely several Kilometers wide. The way to understand this would be best if standing on the right shoreline of the lead, whereas steady ice provides a view of the expanding lead to the westwards. The winds seen by streamers help push open the lead further towards the greater pack ice. The lead parallel to the coast, less contrarian to wind direction opened less.
Higher resolution pictures demonstrate a battered ice shelf:
Higher resolution pictures demonstrate a battered ice shelf:
DMI shots give a closer look, while there is no North Pole expeditions from way of land this year, potential extreme sport skiers would have had a terrible time close off the starting mark at Wardhunt Island if they were on the ice now. The degree of damage is significant seen by many smaller fracture leads, the most dangerous ones to venture near. With higher resolution picture Crescent leads appear numerous, however they are highly visible from the surface horizontally , since they are wide and give unstable ice conditions, narrow dangerous leads are those covered by snow with very little ice under . This entire current event will disappear with ice refreeze and snow cover. Only to reappear again when conditions are right.
A few days later , it got really bad, very much like summer ice break with land just 5 months early:
DMI January 25 213 at 04:32 UTC Very close to the worst open water break in January ever filmed, if not the worst, I do not recall such very wide open water next to shore when so cold, even if temperatures were significantly above average . NW higher altitude Greenland appears very warm, Fjords and Inlets look very white confirming the scant surface temperature data available, over darkening processing seems possible to capture sea ice features or there is a great deal of heat above the surface. Only a radar picture may solidly confirm precisely how wide this parting of sea ice is, but no doubt its huge.
WD January 23-24, 26, 2013
New moon March 19 to 21 2002 tide events, look at the Canadian Archipelago NW coast and the progressing tide ebb towards its shore. The leads were recently broken and they revealed tide progressions much better. It was an old program save, play again and again and you shall see.
WD February 9, 2013
Baffin Bay Ice model is getting bigger
~Some chunks of mid-winter Arctic Ocean look awfully like Baffin Bay
AS seen from NOAA orbital satellite, Baffin Bay pack ice has always been impossible to travel on, unless by a skilled Polar bear or by another animal. Recently its sea ice completely vanishes come mid August, is massively fluid despite quite cold air temperatures, a testimony to heat capacity of oceans.
Same January 15 2013 day Beaufort Sea ice appears slightly thicker by satellite imagery, same if not more fractured than Baffin Bay, both ice areas will likely disappear come August 2013. The alternate way of proving how thin this ice may be with ice buoys:
This image of Ice buoys flowing fast was utterly unimaginable for even the summer times when sea ice had a larger portion of multi-year ice. Its a sure sign of thinner ice, more broken, much fractured and a whole lot less safe to venture on.
||The entire month of January 1993 (left) has absolutely nothing comparable with January 2013 above. The flow rates of each buoy, not just a few, are minuscule compared to what is going on in 2013. early nineties were the last days of greatly consolidated sea ice, cemented by their very presence sealing off the Arctic Oceans heat from escaping.
Not even August of 2008 (at Right) is comparable with January of 2013 (bigger map above). What we are seeing is proof beyond much doubt that Baffin Bay sea ice model need be applied for the larger Arctic ocean. The future surely will be like it. A sea of ships for the summer and thinner extremely fluidic ice for the winter. Baffin Bay ice has particular features which ease the presence of cyclones over the entire Bay. It seems obvious that Arctic Ocean new ice morphology is doing exactly the same thing, but on a far larger scale, Baffin Lows are a repository of Cyclones, they die there because of Greenland.
Recent cyclones on their way North dwarf Greenland a great deal more than the spin off Lows which usually die over Baffin Bay, they have no quick place to expire but live a whole lot longer over the Arctic ocean, this ultimately changes the nature of long standing weather cycles going way back in time. At this stage of thinner ice, we are not experiencing the full effect of the change. But have some ideas of what will happen. Massive Cyclones will keep the Arctic even warmer, they will linger longer bringing Northwards all the heat they carry, instead of "bouncing" off cold anticyclonic air frontier and therefore keeping the mid-latitudes warmer. The interim view is a colder mid latitude winter only in some spots, while the further warming of the Arctic.
WD January 16, 2013
24 years ago Ice state comparison revelations
DMI JAN 13 2013 NOAA JAN 13 1989
Northern Ellesmere Left , Northern Greenland to the right on each picture.
At first glance the differences are huge, and they are, click on the picture.
1-> The famous big lead.. In 1989 it was 30 to 40 miles North of Ellesmere (right), in 2013 right next to shore. The big lead is the border between shelf fast ice
and Arctic ocean moving ice.
2-> The strait between Ellesmere and Greenland was far more frozen in 1989. In fact the ice at the beginning of the strait was stable, un-moveable, like a surface of ocean ice shelf, it disintegrates every year.
3-> New floe edge like ice North of Greenland, sign of fluid ice moving right onto its shores, it is much warmer. In 1989 no such ice was seen
4-> Much more fluid pack ice, its warmer, sea ice is thinner. The same ebb tide leads
only seen in 1989 are now joined with hundreds of fresh fractures which are wind an current induced in 2013.
The big lead being further away from Northern Ellesmere was a buffer for its deep ice shelves which are now falling apart. Temperatures over the Arctic ocean is much warmer in 2013, the open water leads unleash a huge amount of energy immediately to the atmosphere. 1989 ice was much more stable and especially easier to sledge to the North Pole by way of land. Each fresh lead freezes over, even in 2013, the thin ice of a fresh lead usually gets crushed and gets to create cumbersome pressure ridges. Making ice treks even more difficult. The fluidity of thinner ice encourages a continuous formation of leads, which appreciably slow down the cooling process especially stronger during the long Arctic night, the formation of winter on a planetary scale is much reduced. The missing link with winter of 2013 and of 1989 is the presence of more open water which literally transforms the climate of the Arctic and well to the Southwards, the thinner ice still slows down the warming appreciably, but its a matter of time when the temperatures will make this 2013 image a thing of the past just as 1989 is.
WD Jan 13,2013
The Picture of a thousand leads
How thin Arctic Ocean sea ice is made obvious by this NOAA infra red picture of January 6, 2013. the ice is seen better by a strong High covering the central portion of the top part of this picture, a warm North Atlantic in origin Cyclone (upper right) rolls along the High pressure Isobars towards the Canadian Archipelago. The orientation of some leads closest to wind blizzard is 90 degrees perpendicular. Away from the wind zone, the leads are aligned with high tide ebbs, the sheer number of leads, unprecedented in Polar Orbiting satellite imagery, simply shows the ice is thin and readily breaks under any pressure. Near surface streamers show the wind direction. Temperatures in the dark zone are near 0 degree C, likely warmer. Past last week or so had a balance of pressure systems between North Pacific and Atlantic Cyclones squeezing a High Pressure North of Central Eurasia. This equilibrium is due to open water which tends to keep Cyclones lingering. The battle for winter being cold or warm is clearly displayed, the incursion of a warm Low streaming along Northern Greenland shores is a recent phenomena increasing the flushing of multi-year ice greatly.
WD Jan 6, 2013
Atmospheric refraction, the curiosity which will become as important as the invention of the thermometer
~Few examples of density problems.
~The new ways to come.
Dr Jeff Masters recent article about Hurricane forecast prowess by European Center for Medium-Range Weather Forecasts , the ECMWF model, brings out a seldom mentioned fact that atmospheric refraction can be used to measure regional tropospheric densities.
"However, the ECMWF model's superior technique used to assimilate the initial data allows inclusion of data from a large number of polar-orbiting satellites, which the other models cannot do as well. Polar-orbiting satellites orbit Earth at an altitude of 540 miles twice per day, circling from pole to pole. Their data is difficult to use, since the it is only available twice per day at each spot on the Earth, and the time of availability is different for each location. According to an email I received from Jean-Noël Thépaut, the chief of the Data Division of the Research Department at the European Center for Medium-Range Weather Forecasts, the ECMWF model uses data from at least fourteen polar orbiting satellites: N-15, N-19, N-19, N-17 (ozone SBUV instrument only), Metop-A, AQUA, NPP (ATMS instrument only), AURA (ozone OMI data only), F-17, TRMM (TMI data), COSMIC, GRACE-A, TERRASAR, and the GPSRO data on top of METOP-GRAS. The data of most importance is the data collected in the infrared and microwave wavelengths, as well as atmospheric density data obtained via GPS radio occultation (as a polar orbiting satellite goes over the horizon, the GPS signals from the satellite get bent by Earth's atmosphere, with the amount of bending proportional to the density of the atmosphere. This GPS Radio Occultation data is gathered from eight polar orbiting satellites, and fed into both the ECMWF and GFS models.) You can find a nice summary of the impacts of polar orbiting satellite data on weather prediction models at this link.)"
Forecasting power found by using refraction is undeniable by the success from the work found here, an instant measurement of atmospheric density has a lot of meaning. Traditionally, density was usually integrated by radiosonde balloon sounding data, which only occurs twice a day in a not representative sampling at irregular locations of the entire Earth. The Oceans are largely not probed aside from the GPS method cited above. A simple measurement of the sun disk dimensions can determine the density of the air instantly. This method is very cheap, can be incorporated on sea ships, remote weather station locations anywhere on Earth. And is not necessarily limited by clouds.
It reveals the physics of invisible air if you know where to look:
This 2005 picture of a sunset demonstrates that the atmosphere can be highly stratified, its the way of hydrostatic equilibriums, perhaps unlike underwater sea thermal zones air thermal layers can be very thin. Less than 1/2 a meter or shallower. The sun can be replaced by a building, a lamp post, or anything opaque reflecting light. Terrestrial mirages can be used just as much.
The sun disk method has a simple rule, the greater the vertical sun disk diameter, the less dense the air is, largely roughly speaking this is the rule.
A simple sun disk picture can tell where it was taken anywhere on Earth- provided the sun elevation is known. Like the Arctic:
March 10 2006 through clouds, the surface based inversion was 3.3 C/100 m.
The measure of density is the sun itself, which if there was no atmosphere would be equal to 32 minutes of arc. Here it is 31.39' . Large despite sizable sea level pressure, but the shot was directed towards the Southeast from Cornwallis Island Canada. The all time spring average for this location was 31.4'. Summer Montreal all time average is 31.47' (at 100 meters above the Cornwallis observation site). The equipment used needs upgrades but the error rate is about .1 arc minutes, which is 6 seconds of arc.
Sun disk measurements were logged in the high Arctic and Montreal for more than 10 years. There has been a slow and gradual increase in sun disk sizes with the usual variances, when a hot year was ongoing like 2005, 2007 and 2010 the sun disks confirmed the temperature record very closely. Spring 2010 had all kinds of records broken, from 2005 to 2012, looking back at specific spatial locations in sun elevation the rank of warmest to coldest is:
#1- 2010 and 2005
#3- 2012,2009 and 2006
Of which a neat cooling was noted in 2008 strongly linked with spring time clear air driven by La-Nina.
NASA GISS temperature record of the Northern Hemisphere ranked
Vertical sun disk diameters from one location alone compared from one year to the next mirrored the temperature trend almost exactly. In other words, density of the atmosphere is a very important metric indicating Global Warming. Having density measurements taken from the entire Earth would be the most precise metric known.
Surface temperature is not directly linked with vertical sun disk dimensions. March 7 2006 had a near average height.
While at the Equinox the vertical measure shrunk despite warmer surface weather. Higher pressure usually gives a smaller vertical sun disk size. Not in this case. The atmosphere is vast, especially horizontally. Therefore a sun disk measurement is very similar to a GPS satellite occultation. Except for the cost in acquiring it.
More to come.
WD Jan5, 2013
